Product Detail

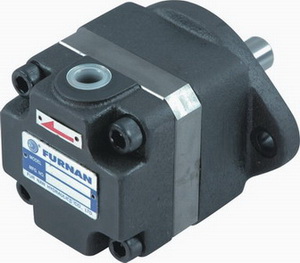

NO.: HVP-FAI(FA1) Class: Fixed Displacement Vane Pump

◆Small-size light design、 Low noise、 Low pulse、Blade Pump of Low Pressure. Available for the main processor, monostable machine and the assembly of small-size hydraulics.

◆型式號碼表示法 / MODEL NUMBER DESIGNATION

   HVP-FAI──F──11──R
          ①        ②     ③     ④

① 系列號碼Serial Nunber
② 內部構造尺寸Internal structure size
③ 裝配型式 Assemble model       L:腳座型 Foot Type
                                                     F:法蘭型 Frange Type
④回轉方向 (自軸側觀之) Direction of Revolving( Side View of Self  Aligning Bearing)
                                                                              R:順時針方向Clock wise Direction
                                                                              L:反時針方向counter-clockwise direction


性能表 / SPECIFICATION
型式
號碼
MODEL
最高
壓力
MAX.
PRESS.
kgf/cm2
在1200 r..p.m,粘度20 cst 時的特性
OPERATNG CHARACTERISTICS AT 1200 r.p.m WITH 20 cst FLUIP
回轉速度
SPEED r.p.m
配管尺寸
PT
PORTS SIZE
重量
WEIGHT (kg)
吐出量 DELIVERY l/min
軸入力  INPUT
KW
最低
MIN
最高
MAX
出口
OUT
入口
IN
腳座型FOOT
TYPE
法蘭型
FLANE
TYPE
5
kgf/cm2
35
kgf/cm2
70
kgf/cm2
5
kgf/cm2
35
kgf/cm2
70
kgf/cm2
HVP-FAI-L5R
70
5.1
4.6
3.7
0.1
0.5
1.0

900

1800

3/8”

1/2”

6.5

5.6
HVP-FAI-L8R
70
9.7
8.9
7.7
0.1
0.8
1.5
HVP-FAI-L11R
70
13.8
12.8
11.7
0.2
1.0
2.1
HVP-FAI-L13R
70
14.9
13.8
12..8
0.2
1.3
2.5

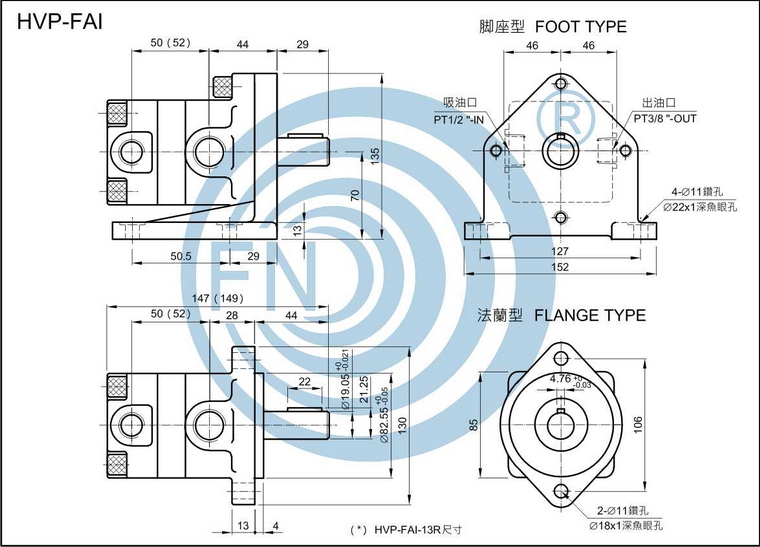

◆外觀尺寸圖 / DIMENSIONS(IN MILIMITERS)
